Comparative Genomic and Functional Characterization of Lactobacillus casei Group (LCG) Probiotic Strains Isolated from Traditional Yogurts by Next-Generation Sequencing

Lactobacillus is the largest genus of family Lactobacillaceae currently containing more than 295 species and 54 subspecies (http://www.bacterio.net/lactobacillus.html) (Lee, 1996). Lactobacillus species are members of normal microflora in humans and animals colonizing their intestinal and urogenital tracts. Beside this, these are also present in diverse food products ranging from fruits and vegetables to variety of naturally fermented products, where they act as natural conservators for texture, aroma, flavor and nutritional values of the products (Atrih et al., 2001; Messens and De, 2002; Mohd Adnan and Tan, 2007). The Lactobacillus spp. have been investigated widely as starter cultures for fermentation and probiotic as well (Gaggìa et al., 2010; Vinderola et al., 2019). Their extended use in fermented products resulted in their acknowledgment as GRAS (generally recognized as safe) by the US Food and Drug Authority (FDA), and won a place on the QPS (qualified presumption of safety) list collected by the European Food Safety Authority (EFSA, 2018).

Among the Lactobacillus species, Lactobacillus rhamnosus, Lactobacillus casei, and Lactobacillus paracasei are closely interrelated, collectively termed as Lactobacillus casei group (LCG). The species of LCG group are most studied ones because of their commercial, industrial and applied health applications. Commercially, they are used for fermentation to stabilize dairy products, often preparing food with better taste and texture. They are reported to produce numerous bioactive metabolites which upon consumption confer benefits to the host defining those probiotics. As such, many LCG strains are reported probiotics. One member, L. rhamnosus GG (LGG), is perhaps one of the most studied bacterial strains in relation to health applications (Segers and Lebeer, 2014). It has been reported that L. rhamnosus GG can shorten the duration of infectious diarrhea, reduce antibiotic-associated symptoms, and alleviate food allergy and atopic dermatitis in children (Doron et al., 2005). The other two species L. casei and L. paracasei have also been isolated from a variety of environmental habitats, including raw and fermented dairy (especially cheese) and plant materials (e.g., wine, pickle, silage, and kimchi). They are used as acid-producing starter cultures in milk fermentation, as adjunct cultures for intensification as well as for acceleration of flavor development in bacterial-ripened cheeses. Generally, these non-starter species share a dominant portion in the LAB community of ripening cheese.

Yogurt, a dairy fermented product is essential part of daily diet around the globe and its uses history is as old as human itself. It has been fermented in a traditional way when human even did not know the basics of fermentation, modern technology, and equipment. From that time until today yogurt is not only safe to use but also acts as therapeutics to treat many illnesses (Fernández et al., 2015). Yogurt fermented in traditional way contains a diverse array of microorganisms, most of which are lactic acid bacteria. Unique characteristics and health benefits of yogurt are definitely due to intrinsic lactic acid bacteria (Joishy et al., 2019). Isolated bacteria from yogurt are also often used as probiotics or starter culture for fermentation (Nawaz et al., 2019). But to this day, characterization of these bacteria is being done with conventional culturing and biochemical testing methods (Patil et al., 2010). However, genetic as well as comparative studies of this important product and associated microbes are almost non-existent (Aryana and Olson, 2017).

Comparative genomics study of lactic acid bacteria is helpful to identify the core and of pan-genomes. Several studies have highlighted the importance of this approach to characterize lactic acid bacteria (Sun et al., 2015; Zheng et al., 2015). In the present study, we applied the comparative genomics approach using next-generation sequencing technology to investigate the genomic features and their functional annotation of Lactobacillus casei group isolated from traditional yogurts. To our knowledge, this study is the first of its kind that provide detail characterization about the three species of LCG group from naturally fermented traditional yogurt environment.

Homemade yogurt samples prepared from domestic cow milk were collected from local vendors in the Karak district of Khyber Pakhtunkhwa, Pakistan. The samples were collected in sterile bottles along with ice pack and immediately sent to the laboratory under cold conditions for further analysis.

The collected samples were aseptically homogenized, and one milliliter of the sample was dissolved in 9 milliliters of phosphate-buffered saline (PBS) as an initial dilution. The samples were further serially diluted, and the different dilutions were plated on general Man–Rogosa–Sharpe (MRS) agar plates. Additionally, selective culture media plates were used for each species/strain. The selective media used was MRS-Bile for Lactobacillus casei/ paracasei, and MRS Vancomycin for Lactobacillus rhamnosus, respectively. Plates were incubated in triplicate under anaerobic conditions at 37, and 45°C for 24–72 hours. The Yuejin anaerobic incubator was used for probiotic bacterial growth (Shanghai Yuejin Medical Instruments Co., Ltd, Shanghai, China). The pure bacterial colonies for each species were isolated using subculture technique. The pure culture isolates were used for Gram staining, cell morphology, etc. The two closely related species of the Lactobacillus casei group (Lactobacillus casei and Lactobacillus paracasei) were distinguished through custom-designed specific PCR primer as described previously (Patro et al., 2016).

The pure bacterial colonies from agar plate were grown overnight in MRS broth followed by DNA extraction through Tiangen bacterial DNA isolation kit (Tiangen, Beijing, China). Further, Qubit 2.0 fluorometer (Invitrogen, Carlsbad, CA, USA) was used to assessed quantity of freshly extracted DNA.

DNA Libraries for high-throughput sequencing were built through commercial VazymeTruePrep™ DNA Library Prep Kit V2 for Illumina (Vazyme Biotech, Nanjing, China). For sequencing, Illumina HiSeq-2000 sequencing platform (BGI-Shenzhen, Shenzhen, China) was used.

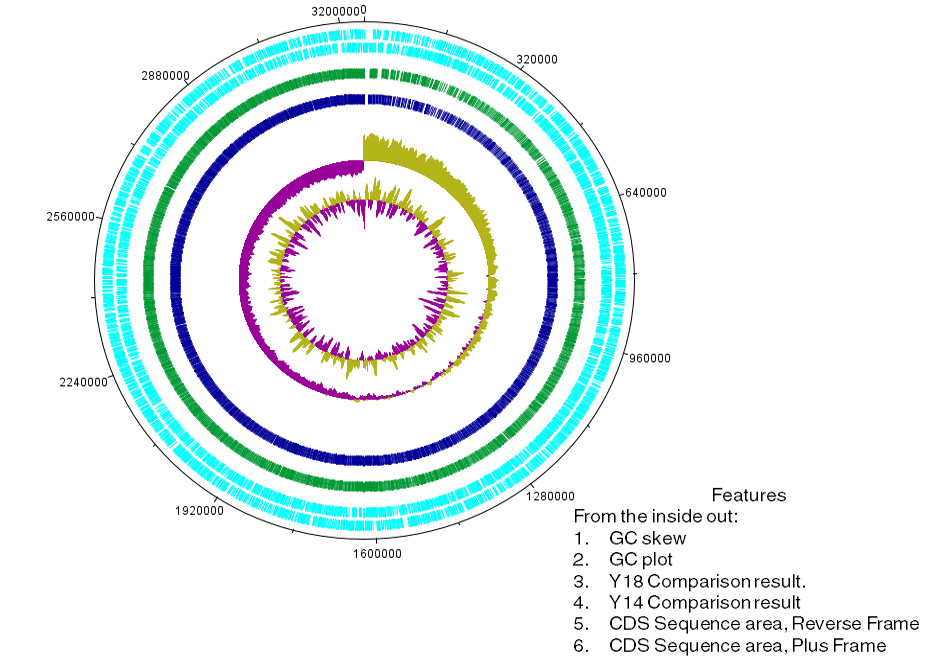

The trimming of the sequencing reads was carried out via Trimmomatic version 0.38 (Bolger et al., 2014). The contaminated reads were filtered using BWA aligned to the reference sequences. The assembly of the high-quality sequencing reads was performed using shovill (version 1.1.0, https://github.com/tseemann/shovill) assembler. The de novo assembly results were evaluated using the Quast software (Gurevich et al., 2013). DNA Plotter (Carver et al., 2009), an interactive Java application was used for generation of circular DNA plots. The draft genome of isolated specie NY2 was used as reference genome, randomly connected the Contig sequences of this genome to generate a full length pseudo-single genome. The Prokka program was used for annotations and aligned the NY4 and Y1 genomes to the reference genomic group constructed by NY2, using a minimum similarity of 70%, and convert the comparison results into GFF format. The results were imported in the form of image.

The assembled genome annotation was performed through the Prokka (version 1.14.5, 10.1093/bioinformatics/btu153) pipeline. The subsystem identification in the genome and functions assigning was determined through the protein-coding sequences (CDS). The comparison of the assembled genome sequences was evaluated in the SEED Subsystem (Overbeek et al., 2014). The evaluation of orthologous genes was performed via clusters of orthologous genes (COGs) (Galperin et al., 2015) and eggnog (Huerta-Cepas et al., 2016). To examine the high-level functions of the LCG group isolates, the Kyoto encyclopedia of genes and genomes (KEGG) database (https://www.genome.jp/kegg/) was accessed.

The pan-genome analysis of the bacterial genomes was performed by roary (version 3.13.0, 10.1093/molbev/msz284) pipeline. Briefly, the protein sequences from gff3 files were extracted to a reduced set of protein sequences followed by an all-against-all comparison with BLASTP. The sequence identity was set 98% with e-value 1E-6. Based on BLASTP similarity score, sequences were clustered with a Markov cluster (MCL) algorithm. Further, a concatenated core gene alignment sequence was produced using PRANK (10.1007/978-1-62703-646-7_10).

The summary and statistics of the sequence data and assembly results is shown in Table I. The number of clean reads used in the analysis was in the range of 2303582 to 5418977, with a mean value of3481040. The GC contents were in the range between 46.03to 46.52%, with 46.26% is the mean value. The coverage and GC contents of each identified species/strains in the corresponding sample are shown in Figure 1. The assembled contigs from the genome sequencing data of the three bacterial genomes vary and were in the range of 116 (lowest) for sample NY4 and 201 (highest) for sample NY2. The other important genome features characterized in the current analysis are summarized in Table I.

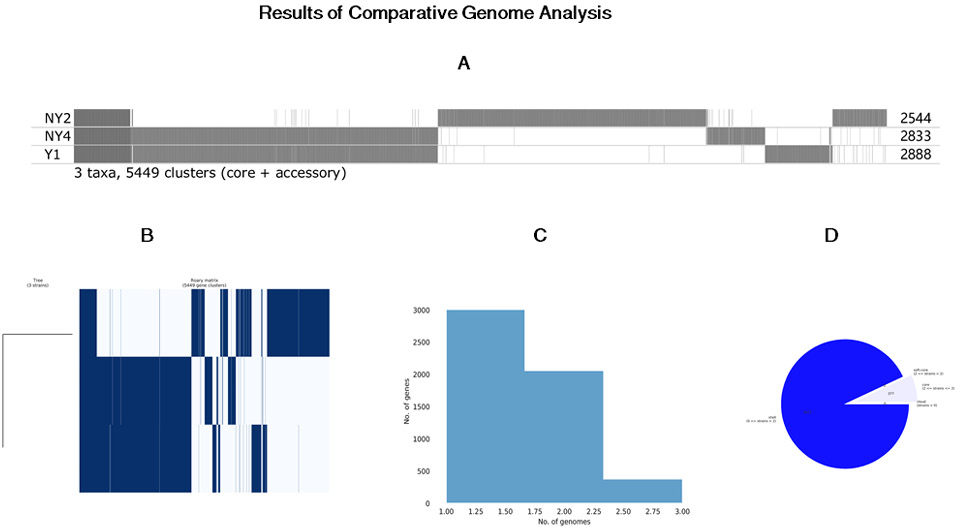

The results of comparative genome-analysis for the three assembled annotated genomes are shown in Figures 2-5. The bacterial species analyzed were three different but closely related species. The pan-genome analysis was conducted together for the three assembled genomes. The altogether pan-genome analysis of the three genomes from three different species identified a total of 5449 genes among which 377 were core genes and 5072 were shell genes (Supplementary Table SI). The same and closely related species strains share some similar accessory genome (Fig. 3A). The specie L. rhamnosus (NY2) in L. casei group represents a bit different pattern of the accessory genome while the remaining two species L. paracasei (NY4) and L. casei (Y1) also have a varying accessory genome pattern (Fig. 3A). The sequence cluster of the protein-coding gene in each strain was different, ranging from 2544 to 2888 (detail provided in Supplementary Table SI).

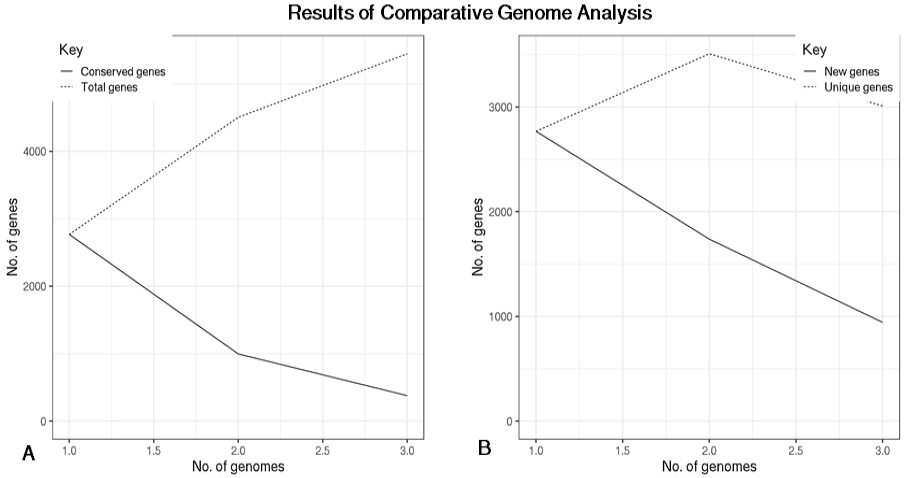

Further, the data obtained by evaluating the number of conserved genes versus the number of total genes as well as the number of new genes and unique genes have varying pattern (Figs. 4 and 5). The number of conserved genes decreases as the number of genomes increases (Fig. 4A). However, the number of unique genes increased as the number of genomes embedded for the first three genomes and showed a declining pattern as further genome was embedded in the analysis (Fig. 4B). The pattern of the number of new genes showed a constant decline as the number of genomes embedded in the analysis (Fig. 4B).

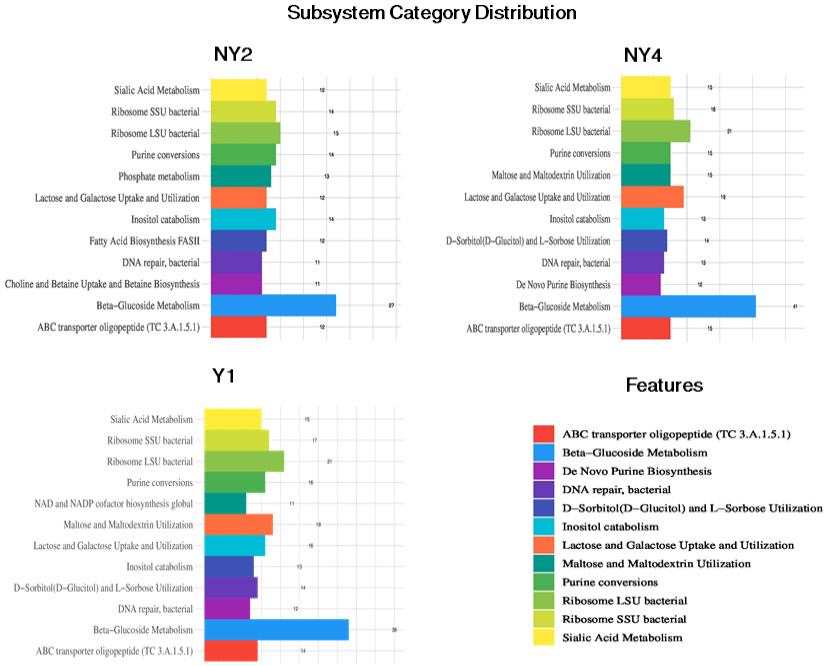

The subsystem category distribution of the dominant systems identified in the three annotated genomes using the SEED database is shown in Figure 5. Among these subsystems, Carbohydrates was the largest subsystem, followed by protein metabolism. The other dominant systems were DNA metabolism and nucleoside and nucleotide (Fig. 5). Besides this, numerous other subsystems with different numbers were identified see Figure 6 and (Supplementary Table SII-SV).

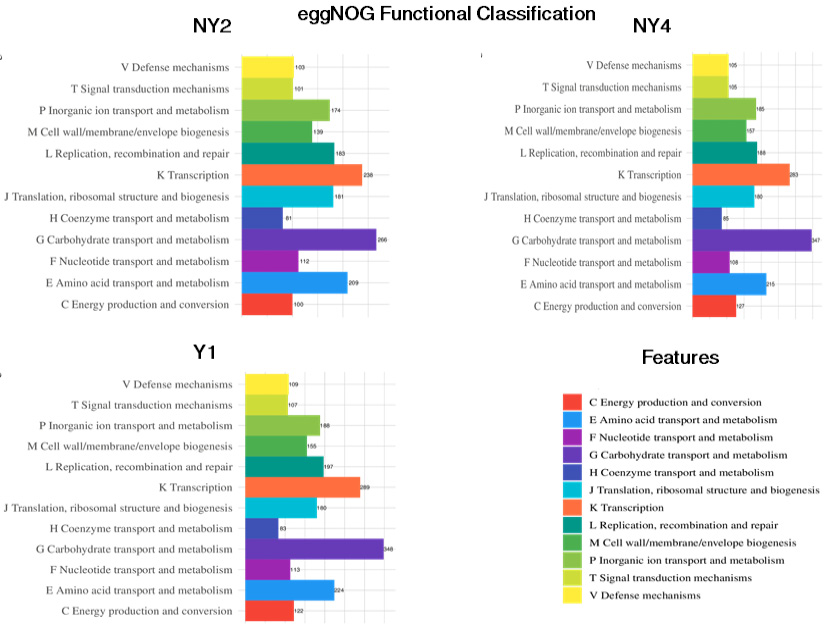

The eggnog database, hosted by the European molecular biology laboratory, is a database of orthologous groups and function annotation of the genome. The functional study analysis of the three annotated genomes revealed that the COGs associated with “Carbohydrate transport and metabolism were dominant followed by those associated with Replication, recombination, and repair. The other dominant categories with the majority of COGs associated were amino acid transport and metabolism and Translation ribosomal structure and biogenesis, respectively Figure 7 and Supplementary Table SVI-SVII.

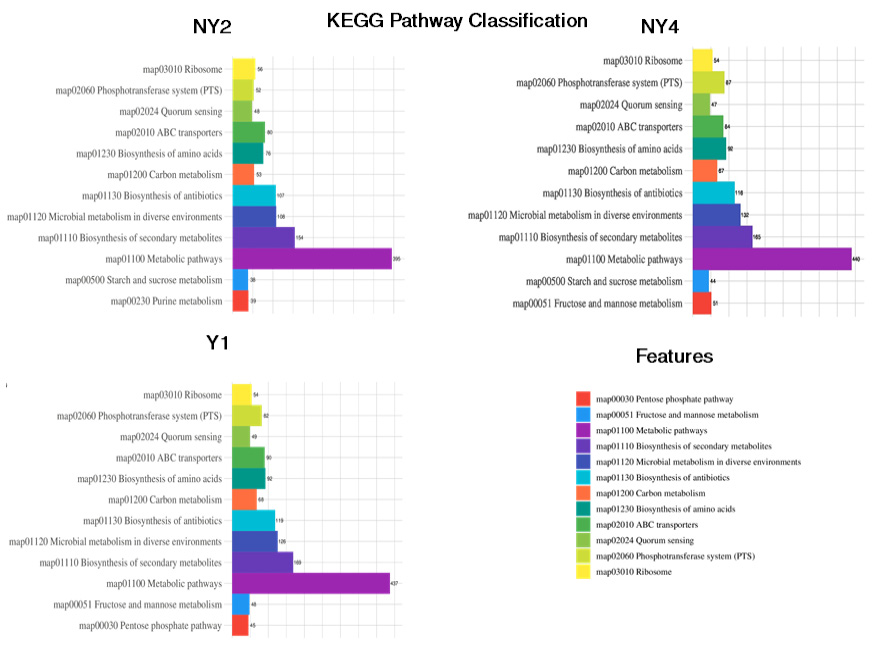

The information provided by the KEGG database is related to the high level functions for high throughput sequencing data regarding genetic information processing, metabolism, cellular processes, human diseases, environmental information processing, drug development, and organismal systems. Using the KEGG database pathways as a reference, the genome content in the current analysis were characterized to identify the biological pathways. The majority of gene contents were involved in metabolic pathways, biosynthesis of secondary metabolites, microbial metabolism in diverse environments, and biosynthesis of antibiotics respectively Figure 8 and Supplementary Table SVIII-SX.

The analysis of the current study provides a detailed insight into the genome characterization of important probiotic bacterial species found in natural homemade yogurt samples. Yogurt, the fermented milk product is one of the most famous and widely consumed traditional fermented food and associated with various health benefits. The three probiotic bacterial species identified and characterized in the current analysis have a proven record of ideal starter cultures as well as associated with the health benefits in different health complications (Johansson et al., 2011; Huang et al., 2017; Dimitrellou et al., 2019). Functional genes associated with variety of functions ranging from adaptation and survival to the nutrient metabolism is present on the genomes of each bacterium, but the genome itself is sensitive to environmental conditions and situations (Dong et al., 2019). Moreover, bacteria have niche specific functional characteristics while the genome of lactic acid bacteria is highly fragile and can easily be affected by any external factors (Ceapa et al., 2016). In order to understand bacteria, its functions and associated environment, it is necessary to sequence and study more new genes. Not only this, but previously sequenced genomes need to be sequenced and revisited (Siezen et al., 2012; Ceapa et al., 2016; Dong et al., 2019). In connection with this need, we adopted an emerging approach to comprehensively analyze the genome contents and its functional aspects of LCG species isolated from traditional yogurt.

The three species of the Lactobacillus casei group (LCG), Lactobacillus casei, Lactobacillus paracasei, and Lactobacillus rhamnosusare important group of probiotic bacterial species of lactobacilli. The health-promoting properties and industrial applications of this group have made it an interesting and never-ending research topic. The members of this probiotic group are reported to have a positive role in treating cancer, diabetes, obesity, diarrhea and allergies (Bermudez-Brito et al., 2012). Members of LCG are also used for improving the color texture and flavor of food products (Di Renzo et al., 2018). Similar to others LAB, the members of this probiotic isolated from yogurts and other sources are usually identified and characterized through classical microbiological techniques (Dimitrellou et al., 2019; Bancalari et al., 2020). These techniques are laborious, timing taking are error prone in terms of functional identification. However, the current analysis provides more comprehensive characterization using the high throughput sequencing approach in term of gene contents identification and functional annotation, subsystem distribution, and biological pathway identification (Figs. 3-7).

Next-generation sequencing is a powerful tool to identify and characterize the microorganisms from different sample types. Compare to traditional microbiological techniques, NGS has greater precision and accuracy and provides more in-depth insight into the microbial genome characterization as well as their functional annotation. Further, for closely related bacterial species like Lactobacillus casei group, which are difficult to differentiate based on traditional techniques, NGS remains a tool of choice to conduct such type of comparative analysis with greater confidence. Although the expansions of NGS in different research areas have been increased over the last few years, it is still very limited in dairy-related research. Our analysis provides a clear direction to expend this sophisticated tool to comprehensively characterize the other important probiotic microorganism from the dairy-related origin. This can expand our knowledge about the choice of probiotic microorganisms, their health effects, as well as their safety concerns.

The GC contents we analyzed for the genomes were in the range between 46.03 to 46.52%, with 46.26% the mean value. The published literature supports our results as lactic acid bacteria have GC contents ranging from 32 to 52%/ (Mendes-Soares et al., 2014). The difference in percentage of GC content is directly linked with genomic size and structure, and ecological niche to which a microorganism belongs, thus it may vary even for strains (Šmarda et al., 2014). The variation in coding sequences and gene number is also strain dependent trait (Sun et al., 2011).

The assembled contigs from the genome sequencing data of the three bacterial genomes vary significantly. The consequence of contig number on the functional characterization has not been confirmed by literature or there is any typical range for the number of contigs so far. The variation in contig number is associated with technology being used for sequencing and methodology used for assembly (Smits, 2019). The pan-genome analysis of the three strains identified a total of 5449 genes among which 377 were core genes and 5072 were shell genes. Differences in the accessory genes are associated with strain specific characteristics (Pintara et al., 2020). The subsystem category distribution of the dominant systems identified in the three annotated genomes using the SEED database. Among these subsystems, Carbohydrates was the largest subsystem, followed by “protein metabolism. The other dominant systems were DNA metabolism and nucleoside and nucleotide”. Milk contain high amount of carbohydrates (i.e. 5g/100ml) followed by proteins (3.5g/100ml) and fats (1.5/100ml). That is carbohydrate metabolism genes are most common in lactic acid bacteria followed by proteins and fats metabolisms (Buron-Moles et al., 2019). The eggnog database, hosted by the European molecular biology laboratory, is a database of orthologous groups and function annotation of the genome. The functional study analysis of the three annotated genomes revealed that the COGs associated with Carbohydrate transport and metabolism were dominant followed by those associated with Replication, recombination, and repair. The other dominant categories with most COGs associated were amino acid transport and metabolism and Translation ribosomal structure and biogenesis, respectively.

This research received no external funding.

The raw data used in the current study have been deposited in NCBI and allocated the accession number of PRJNA664263.

There is supplementary material associated with this article. Access the material online at: https://dx.doi.org/10.17582/journal.pjz/20210711190719

The authors have declared no conflict of interest.
