Synthesis and Characterization of Porous β-Calcium Pyrophosphate Bone Scaffold Derived from Avian Eggshell

The CPP powder was synthesis from waste eggshell by using modified Holanda (2016). Concisely, the uncrushed eggshells were washed with deionized water several times, followed by boiling in water for 30 min to remove shells membrane and any debris. Then dried in the oven at 100°C for 30 min. The eggshell calcium carbonate powder was dissolved in nitric acid (1 mol/L) with continuous stirring for 2 h. A drop of Na2HPO4 was gradually added to the Ca(NO3)2 solution thoroughly on magnetic stirrer at 50 ºC for 2 h. The precipitate was rapidly filtered and twice washed with deionized water, then left dried at room temperature overnight. Finally, the dried powder was calcined in a muffled furnace at 1200 ºC for 2 h. The produced powder was crushed to a fine powder (10µm) with a laboratory mortar grinder (Retech-Rm200, India), and put into scaffold design templet cylinders with a diameter of 5 mm. and then applying 40 MPa. electromechanical pressure compression using (MTI-40MPA-USA) to manufacture of a bone scaffold (Atiyah et al., 2018).

X-Ray Diffraction (XRD) was used to detect the phases and purity of β–CPP. A small sample (150 mg) of powdered was deposited in a holder for XRD. The powder samples were placed in a diffractometer (Crystalloflex diffractometer, D- 500, Siemens. Germany) using intensity rang from (zero to 1000) and diffraction angle (2θ) range from (20 – 60 degree).

The functional groups of the β–CPP present in the prepared powder was recorded on Fourier-Transform Infrared (FTIR) spectrophotometer (Shimadzu-8400S-Japan) using infrared from ranging from (400 to 4000 cm-1).

To reveal the structure and morphology of the β-CPP scaffold by using SEM analyses (Tuscan Vega 3rd Generation-England). The image made at a magnification ×10 allowed us to observe the particles size and surface porosity. The energy depressive spectroscopy also achieved by using the same SEM to known the minerals contents of scaffold and determined the calcium to phosphor (Ca;P) ratio.

The bioactivity of the scaffold was evaluated by using simulation body fluid (SBF). The SBF was prepared closed to chemical combinations of human blood plasma, with different ions concentrations similar to the inorganic compositions of human blood pH. SBF was prepared using Kokubo procedure (Ã and Takadama, 2006) and to observe any appearance of calcium phosphate spherulites layers on the scaffold surface.

The diffraction pattern of the prepared powder sample was similar to the standard (JCPDS card number/ 09-0346). The main diffraction peaks were observed at 29.57, 34.27 and 47.28 at 2θ angle corresponding to 008, 125 and 129 Miller indices, respectively. These sharp and narrow peaks indicated the complete crystallinity of β-CPP powder. However, smallest peaks indicated low crystanality related to blemish of some phase of minerals such as (CaCO3), lime (CaO) and other bioapatite. The average size of the crystallite powder measured by the Scherer’s equation was found to be 444nm (Fig. 1).

The reflections of XRD matched closely with the standard reflections of β-CPP (JCPDS No. 09-0346). The appearance of patterns peaks in the XRD powder at 1200 ºC became sharp and narrow which indicated increase in the purity of the powder. This is similar to that of Zyman et al. (2017) who mentioned that increase in the calcinated temperature over 800 ºC lead to an increase in the purity of CPP by appearance of sharp peaks patterns and also the high calcinated temperature has a major role in the purity of powder product by conversion the powder from amorphous phase to well crystalline phase. The average crystallite size of the β-CPP powder calculated by the Scherer’s formula was found to be 444 nm, and it is reported that crystallite size growth with increasing calcination temperature (Berent et al., 2019), thus the implant with large particle size have favorable results by leaving suitable porosity between these particles specially after compression process to produce the β-CPP implant. This leads to enhanced interactions with biological fluids and cells and accelerates peri-implant bone healing as well as improves osseointegration at the implantation sites in vivo (Zhang et al., 2014).

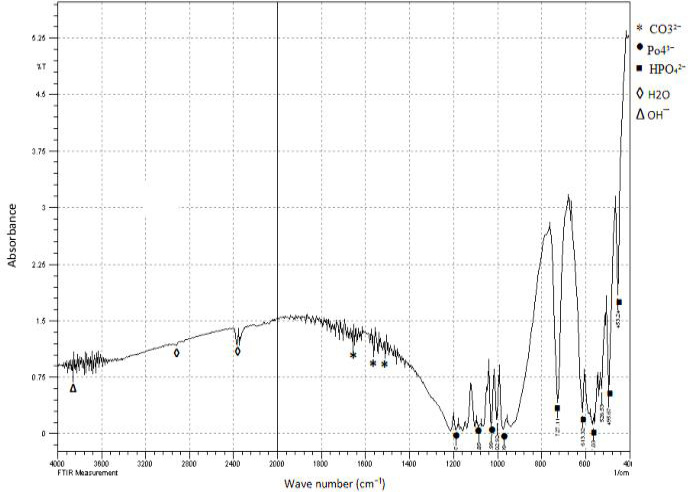

The FTIR spectrum of β-CPP powder sample shows only the characteristics absorption bands of β-CPP. The prepared powder of β-CPP identified by the absorption spectrum of phosphate ions (PO4³-) groups at bands from 453.24cm‾¹ to 613.32cm‾¹. The presence of stretching bands at 727.11cm-¹ indicated the presence of HPO₄²- group. Also the bands from 1000 to 1200 cm‾¹ were assigned to vibration of PO₄³- and HPO₄²- groups. The bands from 1400 to 1800 cm‾¹ referred to carbonate ions (CO3² ̄) group. The region from 2400- 3200 cm‾¹ indicated the appearance of adsorbed water. The FTIR spectra also indicated the presence of peaks at 3600 cm‾¹ to 4000cm‾¹ which indicated to the presence of hydroxyl (OH‾) group (Fig. 2).

According to FTIR evaluation all of the functional groups were related to typical CPP stretching and bending phases which were similar to the results that presented by Holanda (2016). In addition, a peak 1000 to 1200 cm‾¹ related to asymmetric extending of P-O-P bending modes, while, the band from 453.24cm‾¹ to 613.32cm‾¹ corresponds to symmetric P-O-P stretching of PO₄³‾ ion this result agrees with the results mentioned by Vasant and Joshi (2011).

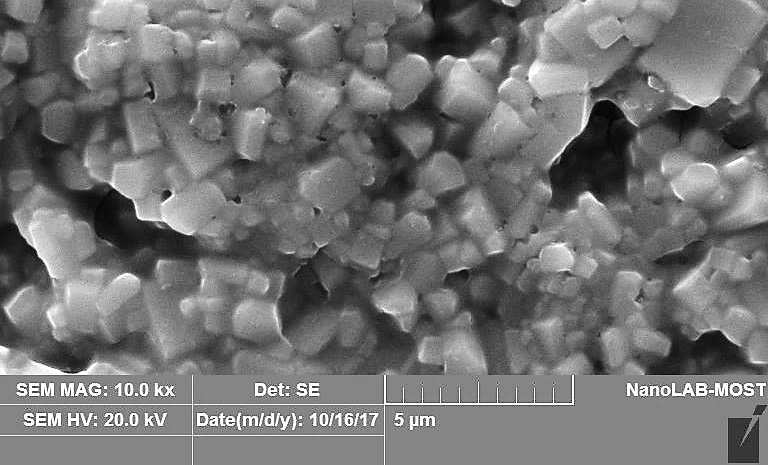

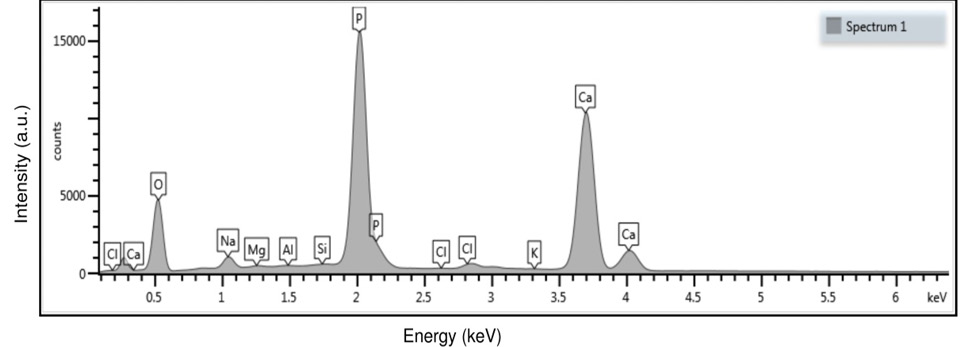

The SEM analysis showed micrographs of an eggshell β-CPP scaffold produced at a calcination temperature of 1200 oC. The SEM shows the morphology of particle which appear agglomerated pillars in shape with the particles variable in size range from 2 to 4 μm with the pore size approximately 4 μm. forming clusters of agglomerates that tend to leave a random and irregular multi-pores in between (Fig. 3). The purity and the Ca/P ratio of the β-CPP scaffold was also confirmed by SEM-EDS analysis that shows the existence of main mineral elements such as oxygen, phosphor and calcium of scaffold sample and the Ca/P ratio to be 0.8 (Fig. 4 and Table I).

The uneven porosity within the scaffold sample causes the roughness on the surface by Safronova et al. (2017). Also the presence of surface porosity of the scaffold can enhance revascularization and bone remodeling, allowing the cells proliferation and improving biocompatibility when it is used as a bone implant in vivo (Hwang et al., 2013). Therefore, the porosity considers key point for bioactivity of calcium phosphate scaffolds. The Ca/P ratio (1.20) detected by EDX was close to the presumed value of β-CPP which is 1.000 (Holanda, 2016). The calcium phosphate-based materials were considered as biocompatible at a Ca:P proportion between 1:l and 2:0, because this ratio is favorable for bone cells activity in vivo (Liu et al., 2008). Salimi (2017) reported the Ca/P ratio of scaffold decreased as melting temperature elevated, which decrease from 1.06 to 0.88, and these ration are closer to Ca/P ratio of the present study (Salimi, 2017).

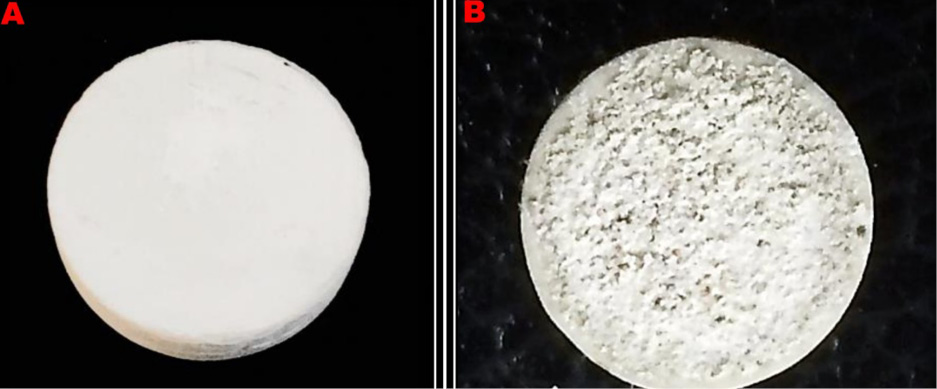

The immersion of the scaffold in the SBF solution indicate precipitate of an apatite layer on the surface of scaffold due to chemical reaction between cations and anions (Fig. 5A and B). After immersion of CPP sample within SBF at 36.5 1ºC for 14 days, the positive Ca²+ ions from SBF are attracted by the OH− and PO4³- ions present on β-CPP sample surface. The increased positive charge on the surface attracts more negatively charged hydroxyl (OH−) and phosphate (PO4³-) ions from the SBF solution, leading to precipitation of the apatite layer on the surface of sample (Chemistry, 1998). The size and thickness of apatite layer increased with increasing SBF immersion time (Sooksaen et al., 2015). The formation of an appetite layer is important for integration of the implanted biomaterials scaffolds within the host bony tissues (Zadpoor, 2014). Although, we found that the SBF has the bone-bonding bioactivity suggesting formation of a bone-like irregular apatite layer on the surface of the scaffold.

The β-CPP, considered an intermediate phase bioactive apatite ceramic between HA and β-TCP can be synthesis by simple and low cost method with waste eggshell as natural calcium precursor source. XRD illustrated the characteristic peaks phase of the synthesized β-CPP powder. FTIR showed the appearance of the characteristics bands of β-CPP. SEM also mentioned that the morphology of particles presented pillars in shape which depicts a typical partial morphology of β-CPP. On the other hand, the simulation body fluid reveals the biocompatibility of scaffold throughout the precipitation of rough, irregular layer on the surface of the scaffold that indicated good chemical reaction between SBF and surface of the scaffold. These outcomes very much the key component in the future attempt to overcome suitable β-CPP scaffold for all type of bones by using three dimensional printing designer machine for the structure of β-CPP bones and vertebrae templets.
